Misplacement and Malposition of Central Venous Access Devices

Definitions:

CVAD

Central venous access devices (CVADs) are used for short or long-term infusion of fluids, medications and monitoring, or when establishing a peripheral venous access is not possible or difficult.CVADs can be inserted into the subclavian or jugular vein as centrally inserted central venous catheters (CICCs or conventionally called CVCs), totally implanted venous access devices (TIVAD conventionally called access ports AP), or can be inserted into one of the peripheral veins of the upper extremities, called peripherally inserted central catheters (PICCs).¹

Misplacement and Malposition of CVAD

The misplacement or malposition of centrally and peripherally inserted central venous catheters describes the improper location of the catheter tip.^2,3

Did you Know?

Where is the “ideal” catheter tip location and how do you place the catheter tip correctly?

“The tip of the catheter should be in a central vein (Superior Vena Cava, SVC, or Inferior Vena Cava, IVC), close to the cavoatrial junction.”¹

Ideally outside of the pericardial sac
Parallel with the long axis of the vein
The tip does not abut the vein or heart wall at an acute angle or end on^3,4

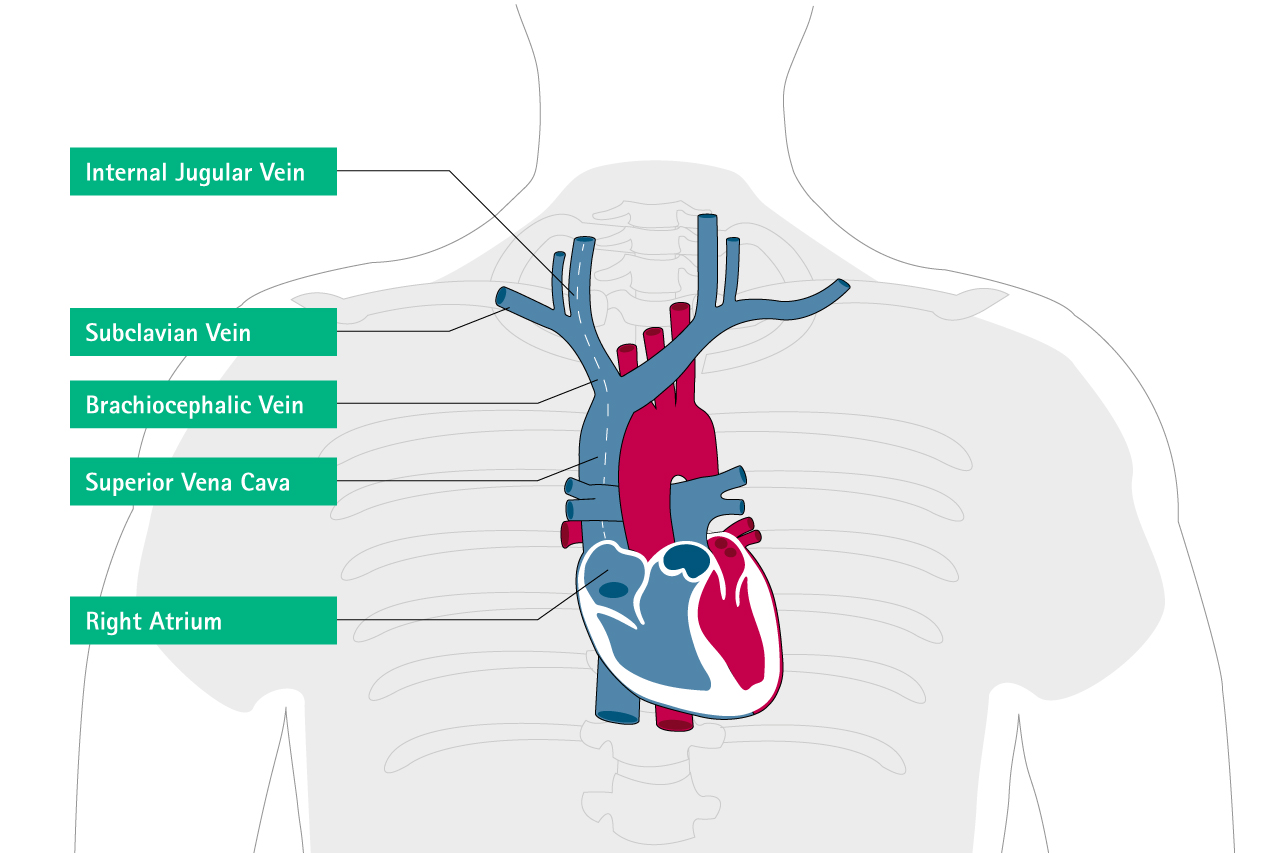

The ideal catheter position is the area between the lower third of vena cava superior and upper the third of right atrium⁵

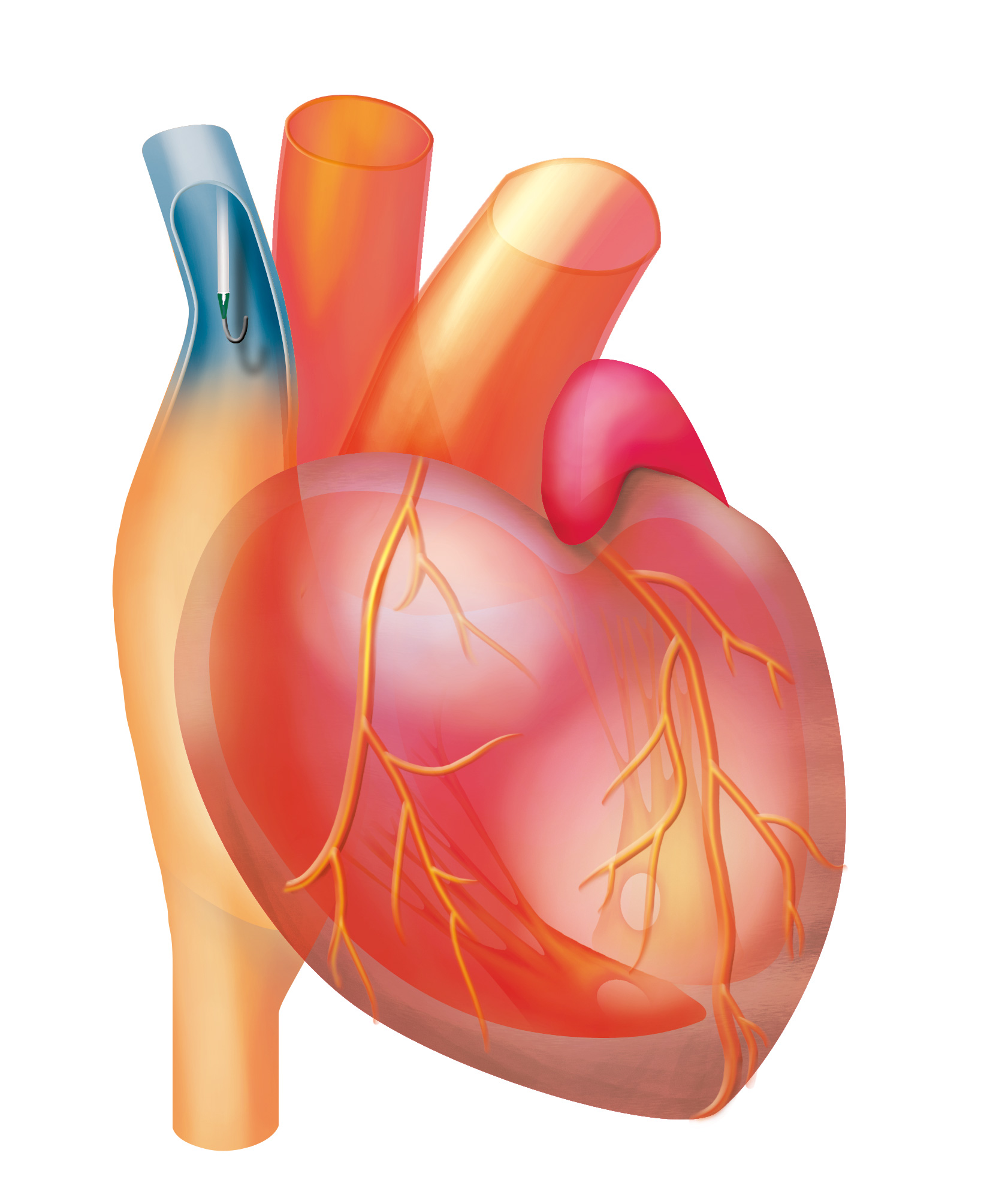

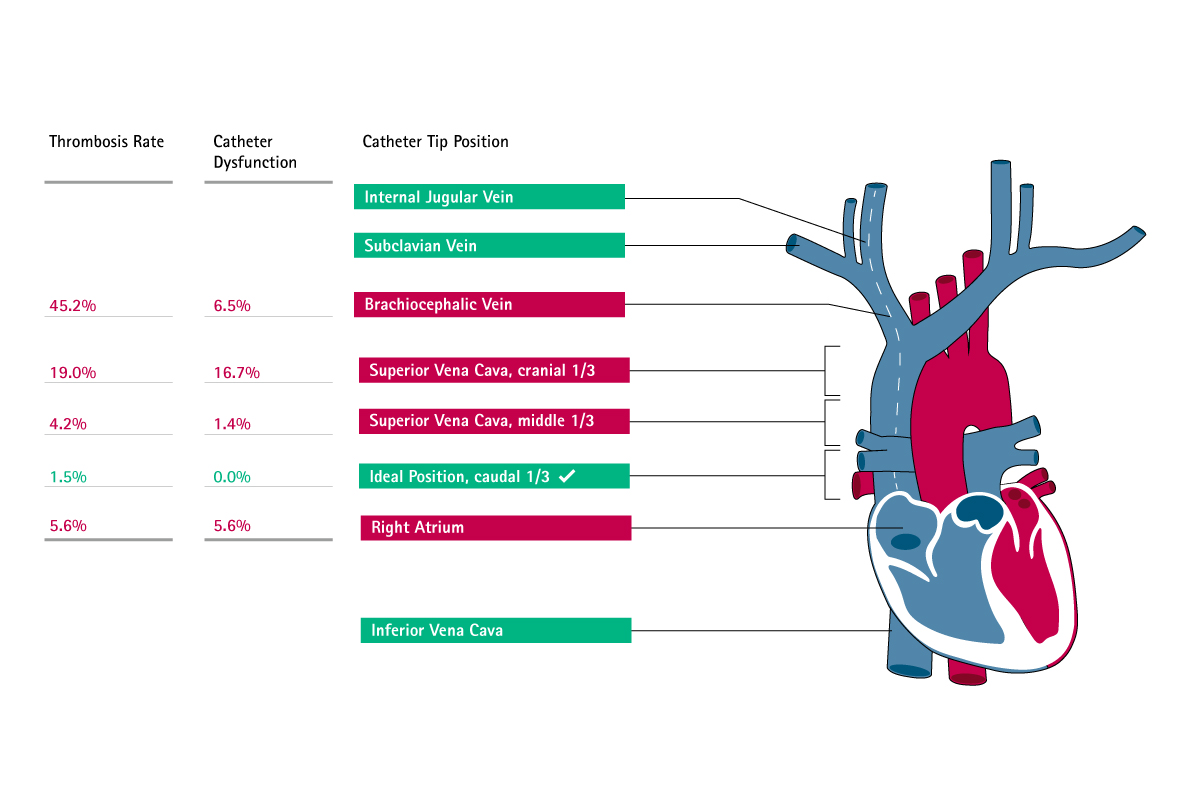

Correct catheter tip positioning⁶

Conclusion:
„…correct position of the catheter has to be ensured during placement

*Caers J, Fontaine C,Vinh-Hung V et al (2005) Catheter tip position as a risk factor for thrombosis associated with the use of subcutaneous infusion ports. Support Care Cancer 13:325-331*

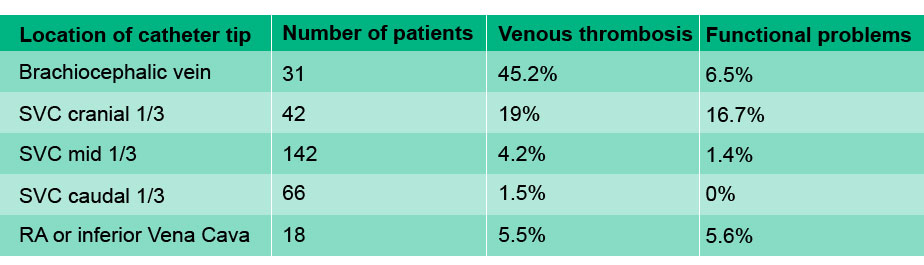

Relation between catheter tip position an complication rate

Location of catheter tip position	Number of patients	Venous thrombosis	Functional problems
Brachiocephalic vein	31	45.2%	6.5%
SVC cranial 1/3	42	19%	16.7%
SVC mid 1/3	142	4.2%	1.4%
SVC caudal 1/3	66	1.5%	0%
RA or inferior Vena Cava	18	5.5%	5.6%

Why is it important to achieve an "ideal" catheter tip location for CVC, TIVAD and PICC?

Infusion of vasopressors, irritant drugs, or parenteral nutrition requires maximal dilution, avoiding mixing of multiple drugs such as chemo- and antibiotic therapy and blood sampling
Extracorporeal circuits, e.g. dialysis requires a very high blood flow rate passing by the catheters, and separation of inflow and outflow of catheters to avoid blood recirculation
Measurement of ScvO2 requires catheter tip lies in or as close to the right atrium as possible

Misplacement/Malposition is one of the most common complications related to CVADs^7-10

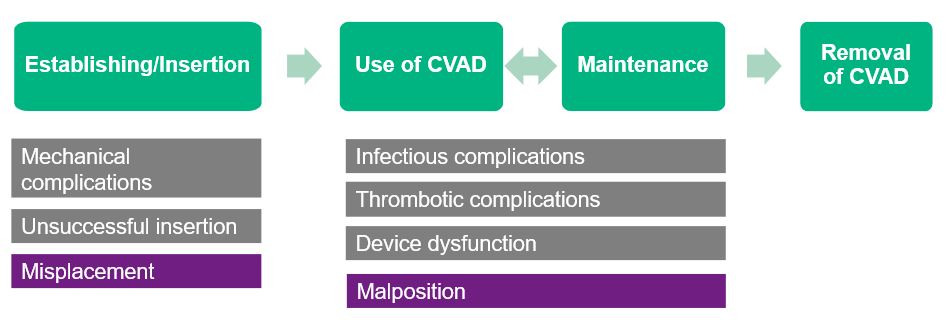

Misplacement/Malposition could occur in different CVAD application

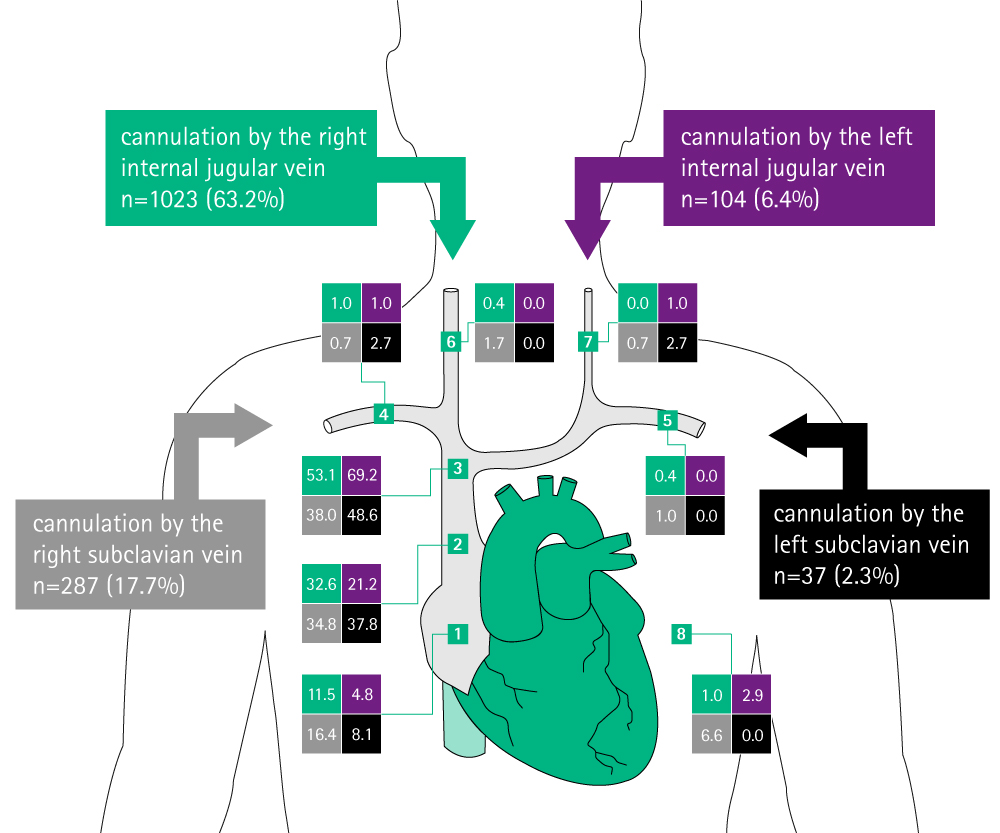

Catheter tip positions in the real practice

Catheter tip positions are shown in percent of the total number of cannulations at each puncture site.

1. Right atrium.
2. Caudal third of superior vena cava (SVC).
3. Cranial two-thirds of SVC or brachiocephalic veins.
4. Intrathoracic part of the right subclavian vein.
5. Intrathoracic part of the left subclavian vein.
6. Right internal jugular vein.
7. Left internal jugular vein.
8. Other Graphic adapted from Pikwer A, et al. Anaesth Intensive Care. 2008; 36:30–7¹²

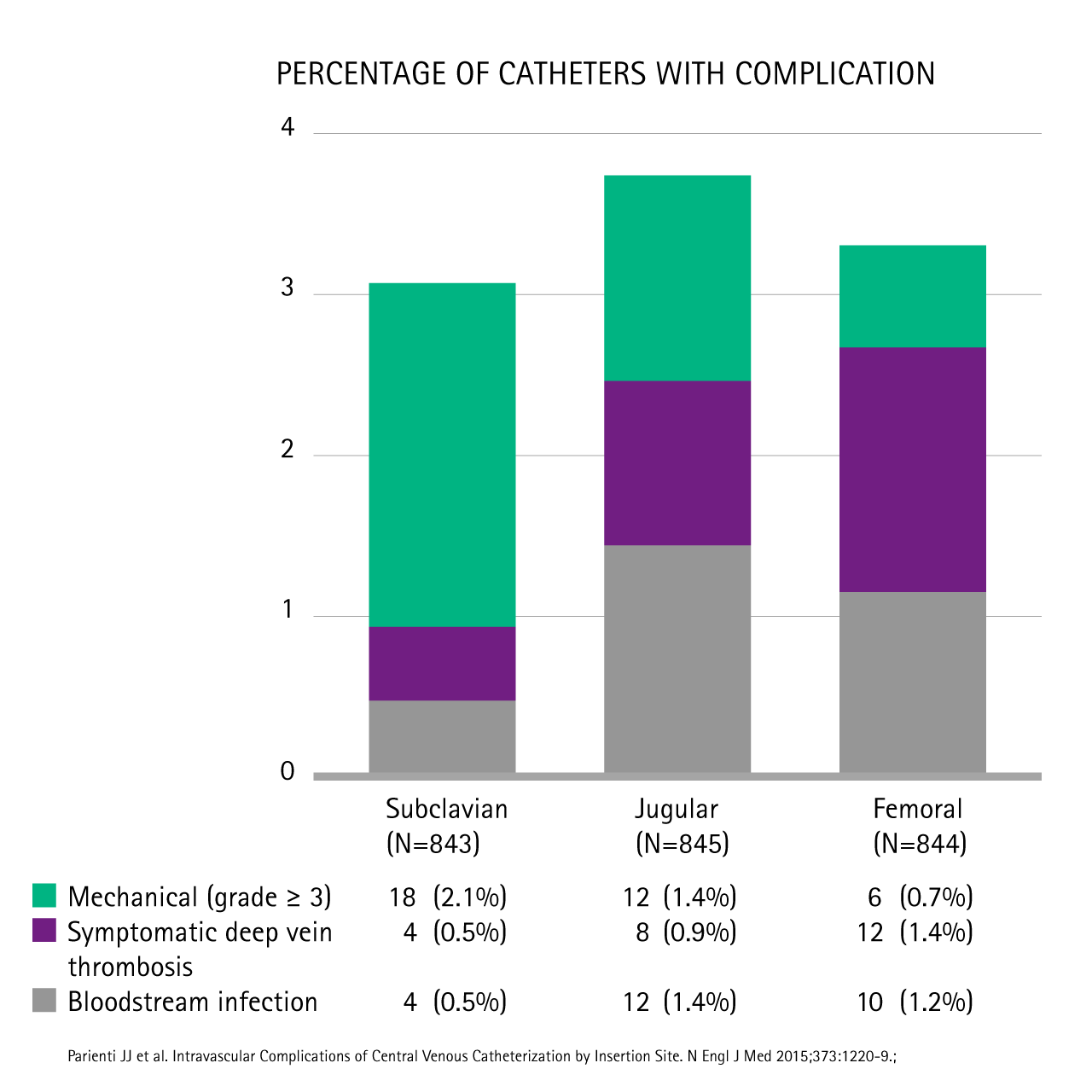

Incidence of CVC complication (%) vs. puncture site

Percentage of catheters with complication⁷

Importance of correct catheter tip positioning for TIVADs & PICCs

Clinical needs:

Access Port catheters might remain in situ for several years!
Therefore, correct and accurate positioning of the catheter is important
Incorrect positioning can lead to a higher rate of long term complications (e.g. thrombosis)*

*Superior vena cava thrombosis related to catheter malposition in cancer chemotherapy given through implanted ports.
^{.Puel V, Caudry M, Le Métayer P, Baste JC, Midy D, Marsault C, Demeaux H, Maire JP.Cancer. 1993 Oct 1;72(7):2248-52.}

379 patients from December 1985 to December 1990

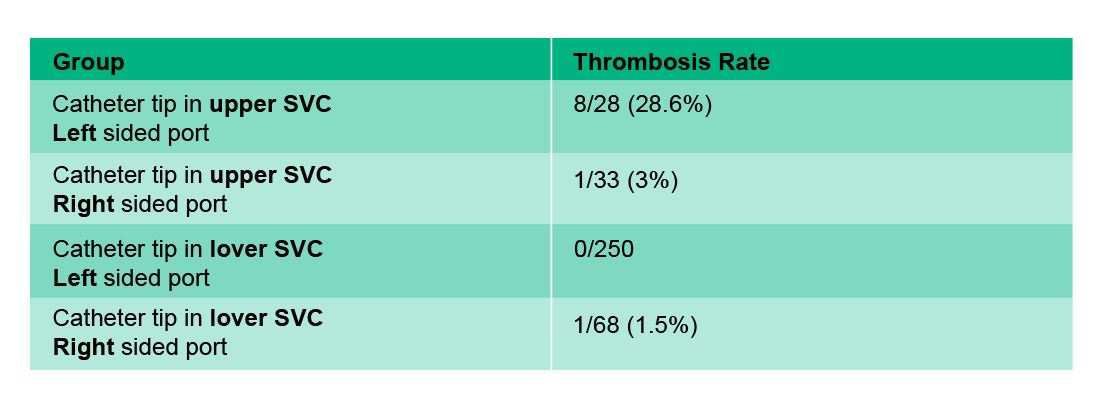

4 groups

Conclusion:

„…patients with left-sided port and catheter tips lying in the upper part of the vena cava are at high risks for severe thrombotic complications.“

Relation between catheter tip position and complication rate

_{Support Care Cancer, 2005 May; 13(5):325-31, Epub 2004 Nov 5.}

Catheter tip position as a risk factor for thrombosis associated with the use of subcutaneous infusion ports.
^{Caers J1, Fontaine C, Vinh-Hung V, De Mey J, Ponnet G, Oost C, Lamote J, De Greve J, Van Camp B, Lacor P}

2005
437 patients
370 patients with solid tumors and 58 patients with hematological disease

Results:

Complications at 91 patients (20.83 %) were detected
Most common complications after implantation
Thrombosis 8.5 %
Catheter dysfunction 4.8 %
Infection 4.4 %

Causes

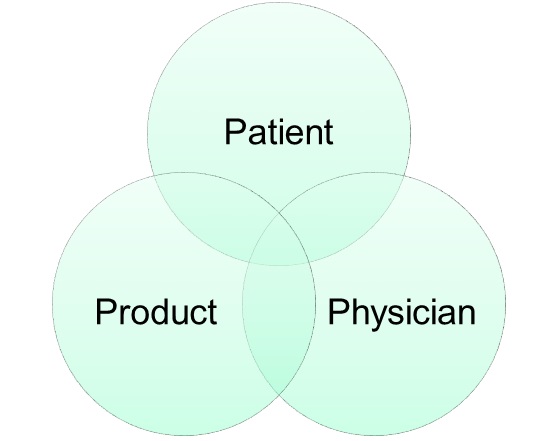

Potential Causes of Catheter Misplacement

Patient factors

Complex or abnormal anatomy (e.g. dilated azygos vein, high CVP, blocked SVC, IVC, persistent left superior vena cava)

Physician/Hospital factors

Staff lack of knowledge, training and experience
Under time pressure, stressful environment
Pinch off Syndrome
Catheter dislocation (not correctly secured)

Product factors

No navigation technique available (Ultrasound, ECG)
Inappropriate catheter size or length

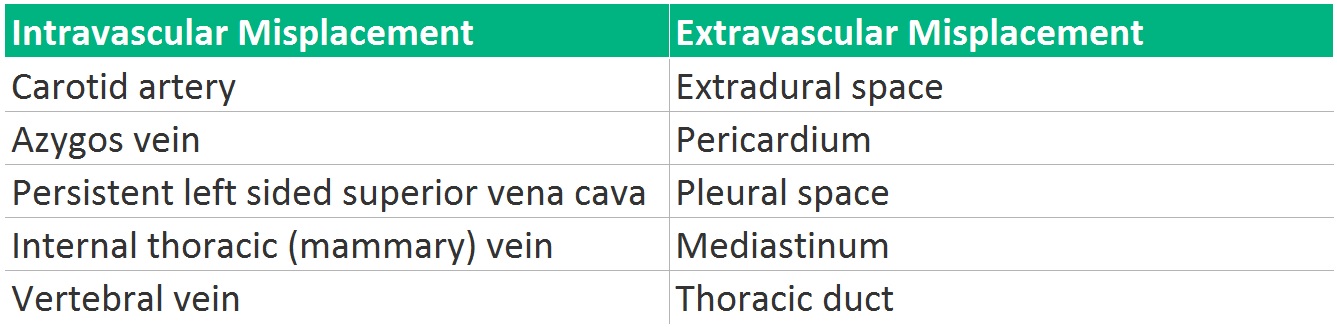

Type and Position of Catheter Misplacement¹²

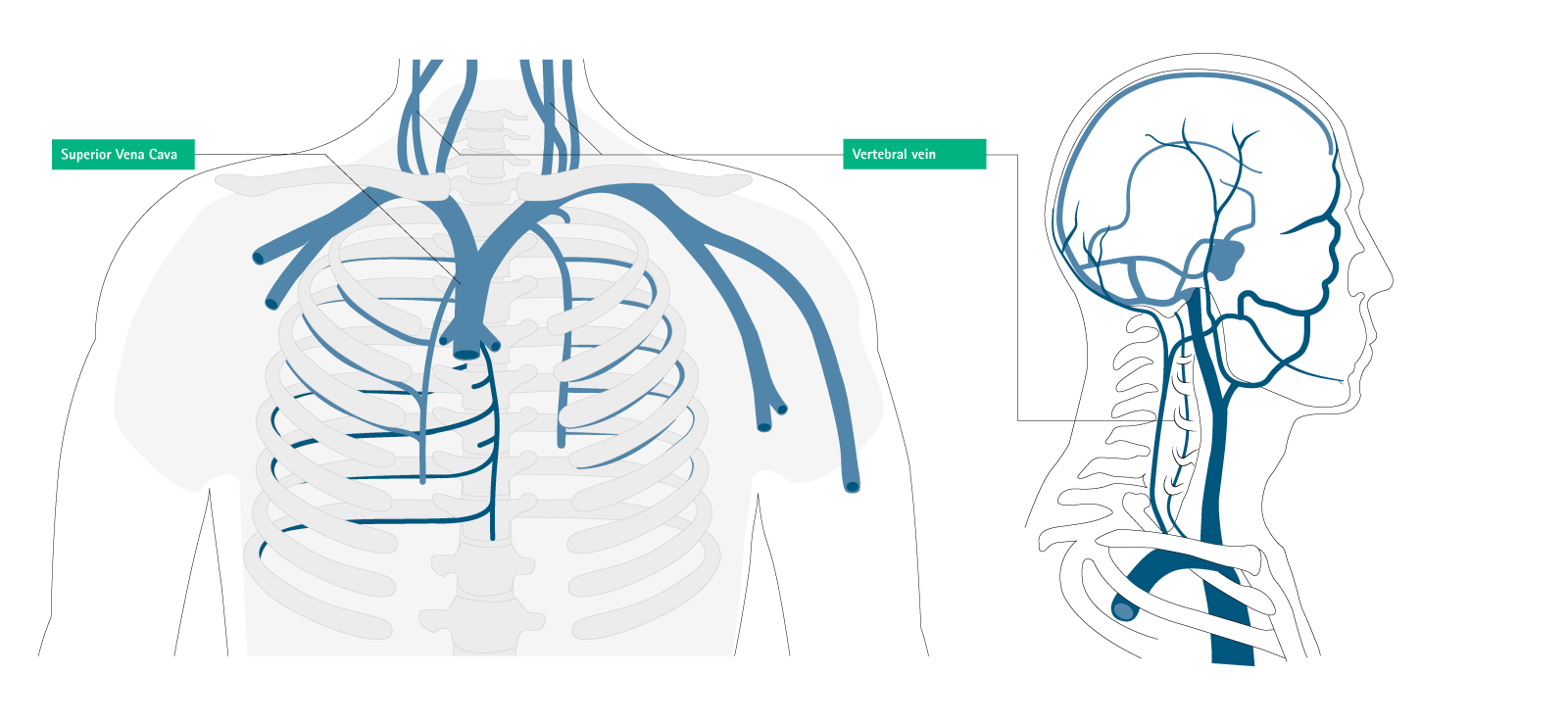

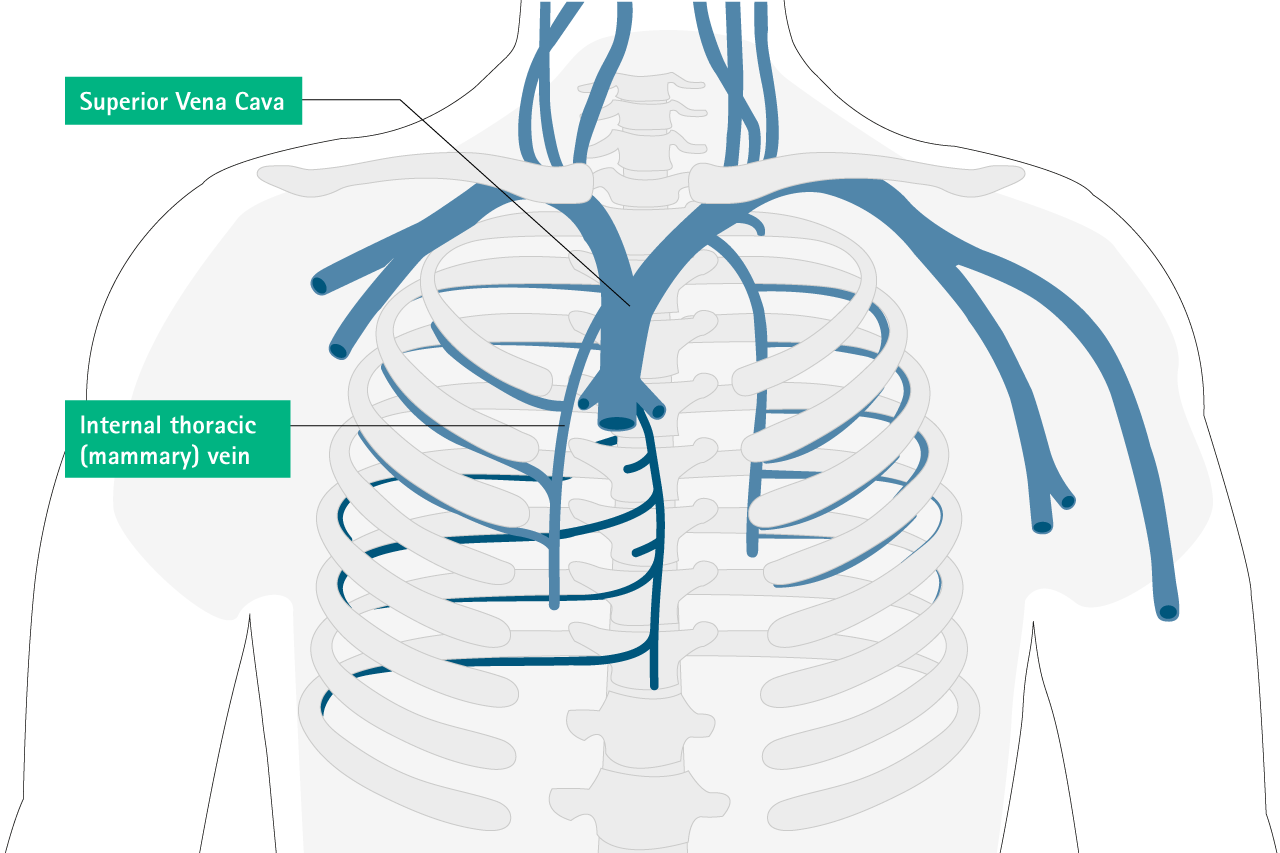

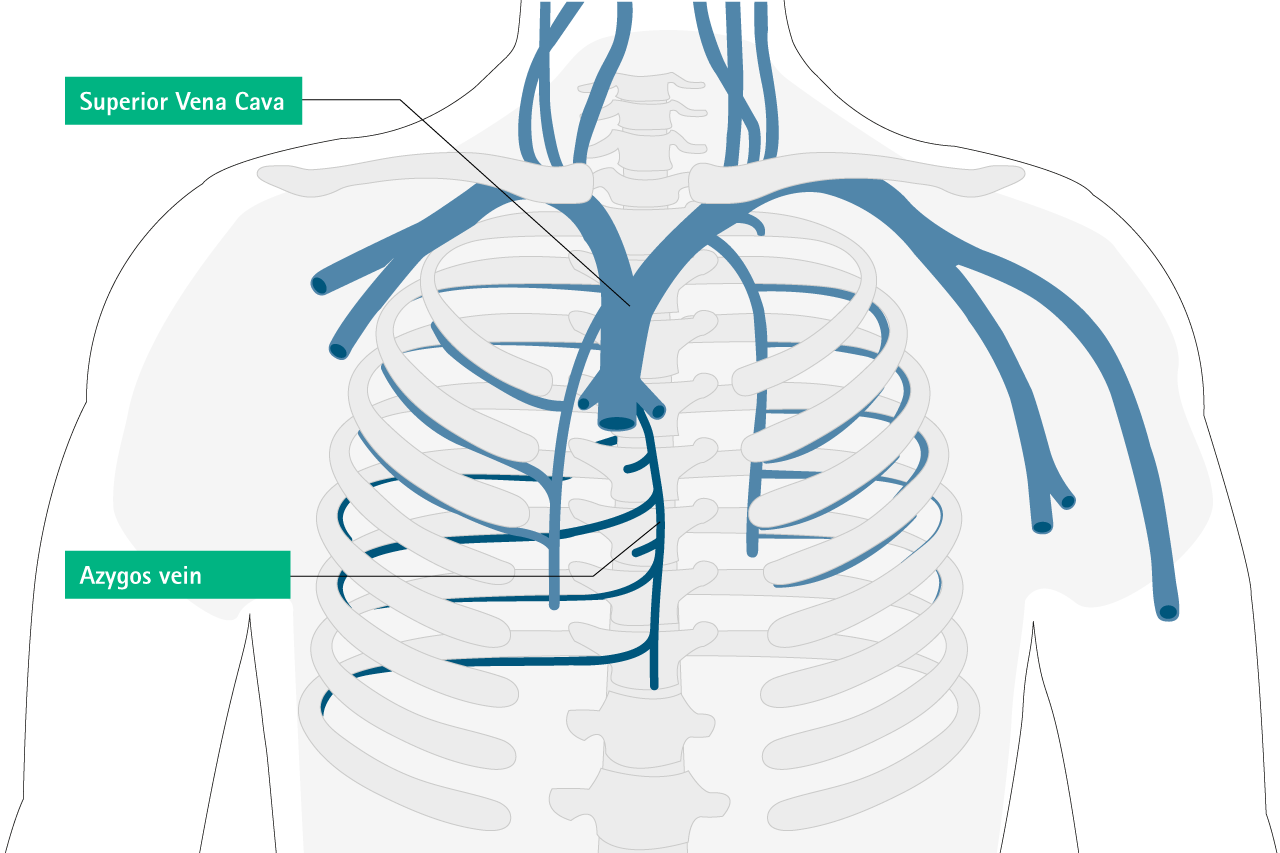

Intravascular Misplacement

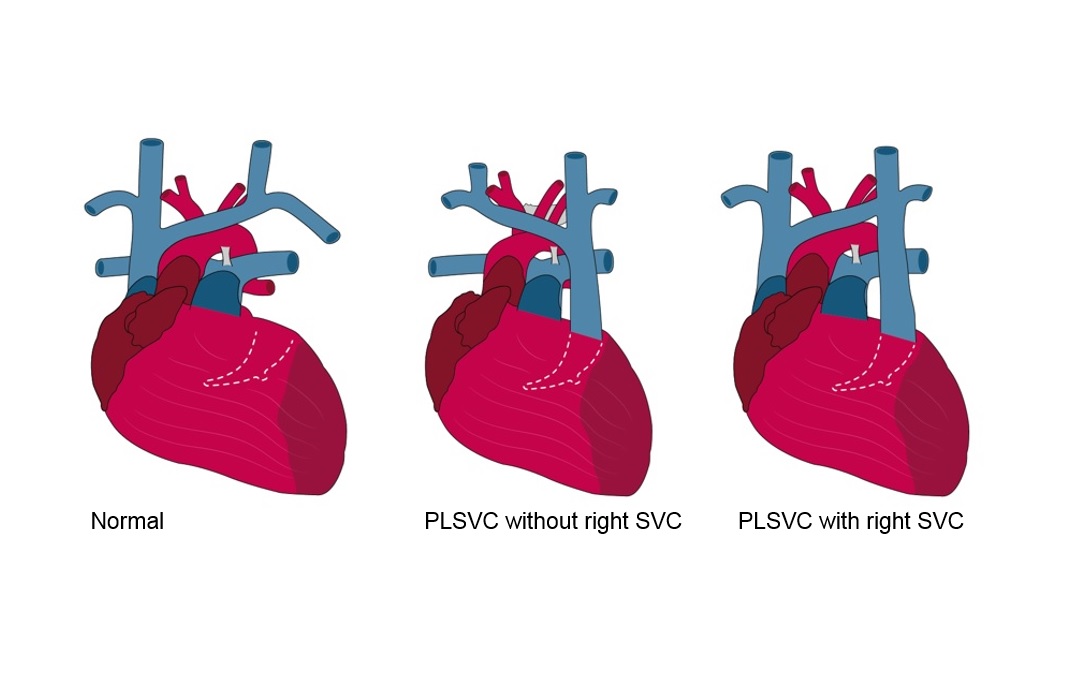

Persistent left sided Superior Vena Cava

Persistent left superior vena cava is a rare but important congenital vascular anomaly. present in 0.3 to 0.5% of individuals in the general population with a normal heart, and 4.5% in individuals with congenital heart diseases. In undiagnosed cases with PLSVC, placement of CVC can result in malpositioning.

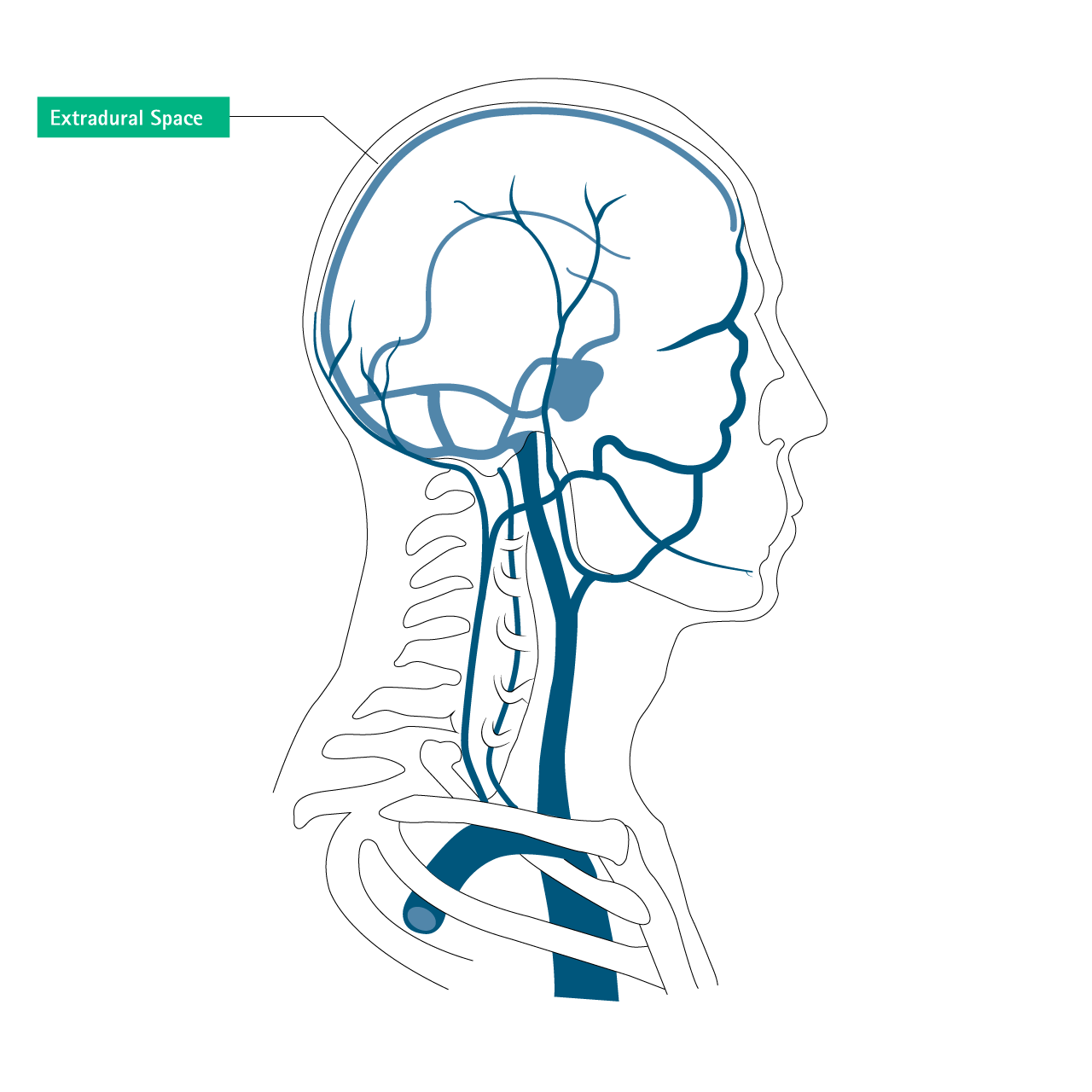

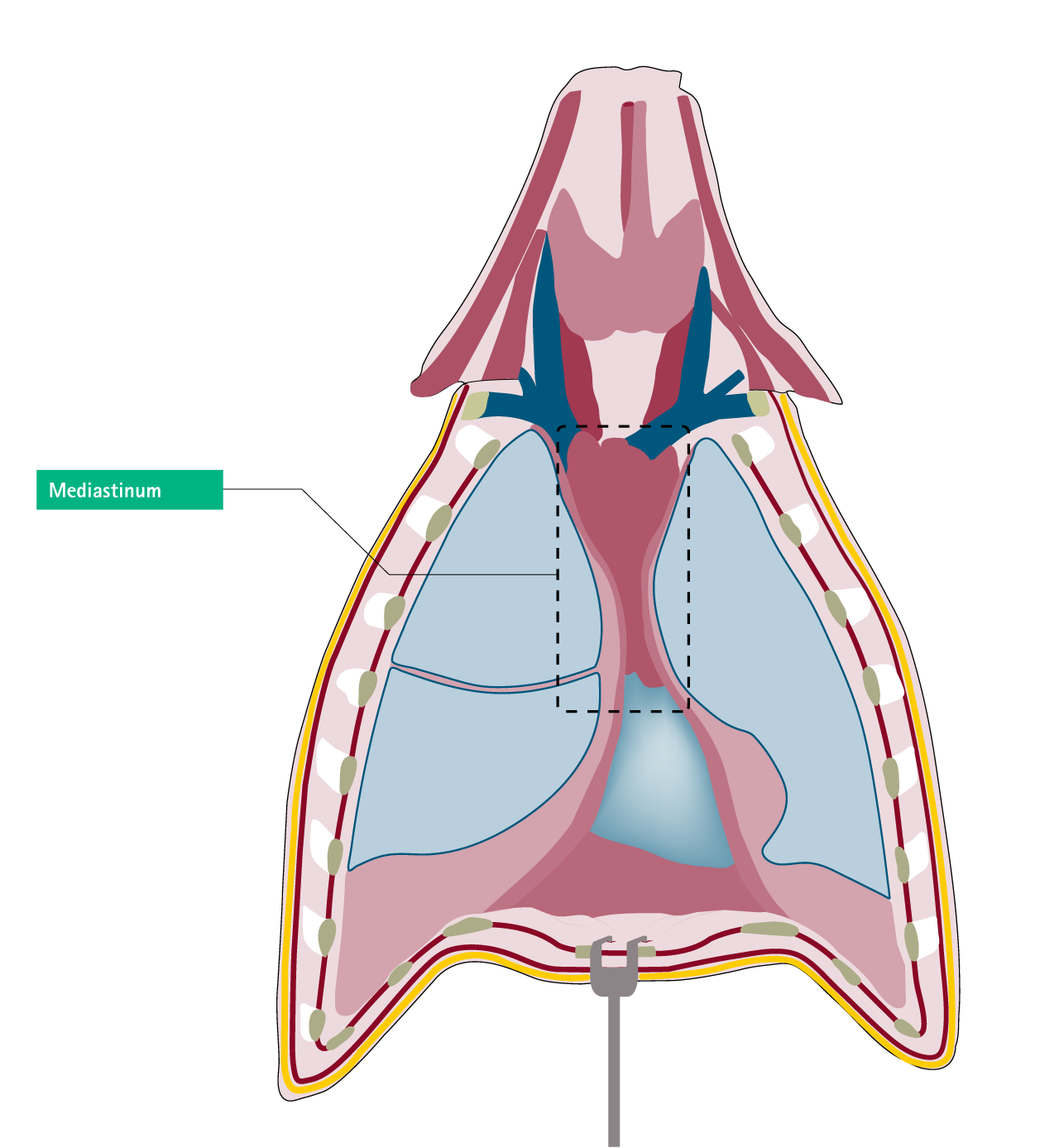

Extravascular Misplacement

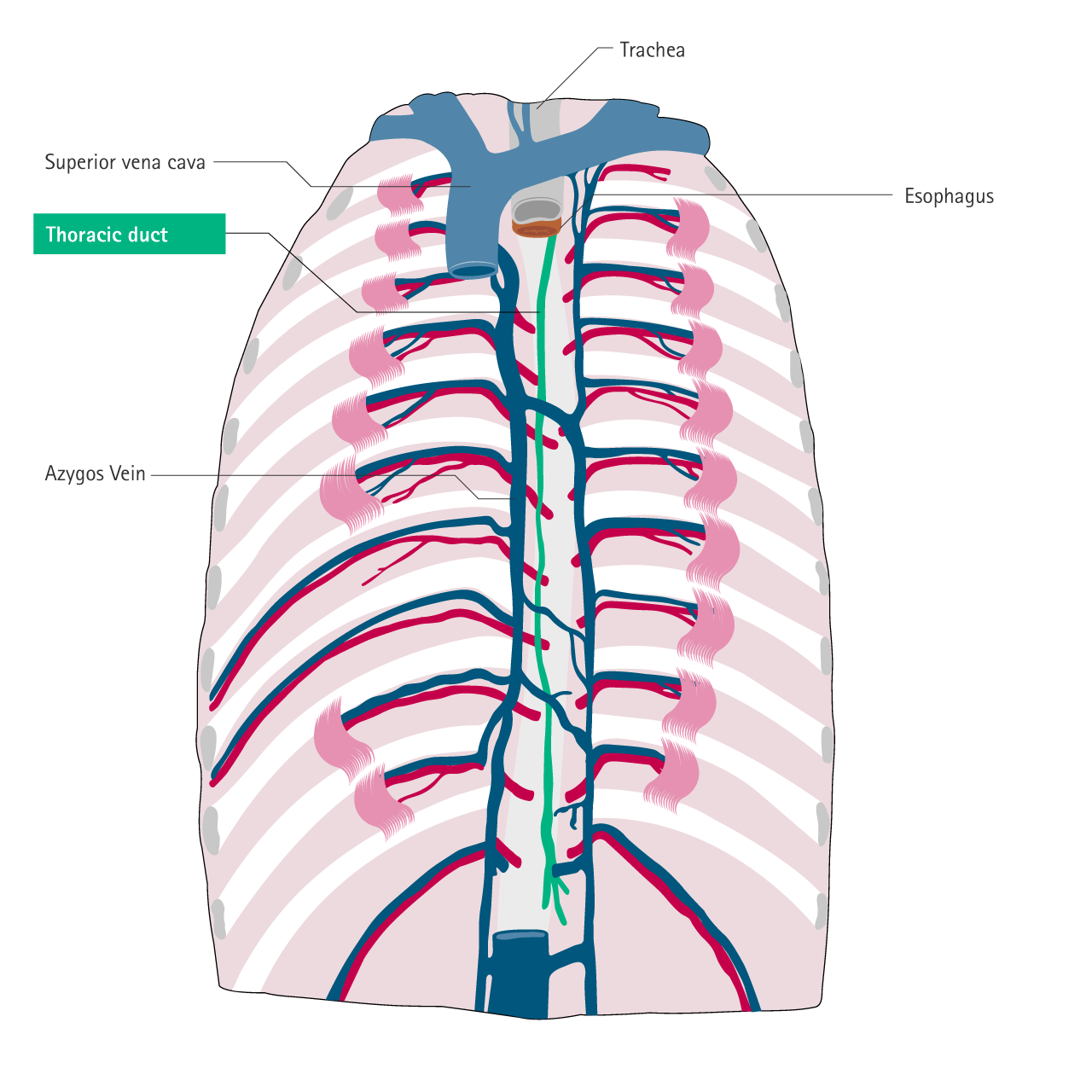

Misplacement_Thoracic_duct — Thoracic duct

Health Consequences due to misplaced CVADs

Consequences related to CVC application

Catheter dysfunction
Delay of critical therapy (e.g. vasopressors, chemotherapy)

Consequences related to Access Ports application

Pinch off Syndrom
Pneumothorax
Hemothorax
Air embolism
Accidential arterial puncture

Complications related to PICC application

Accidential arterial puncture
Hematoma
Difficulties in finding the vein

Complications related to the misplaced location¹²

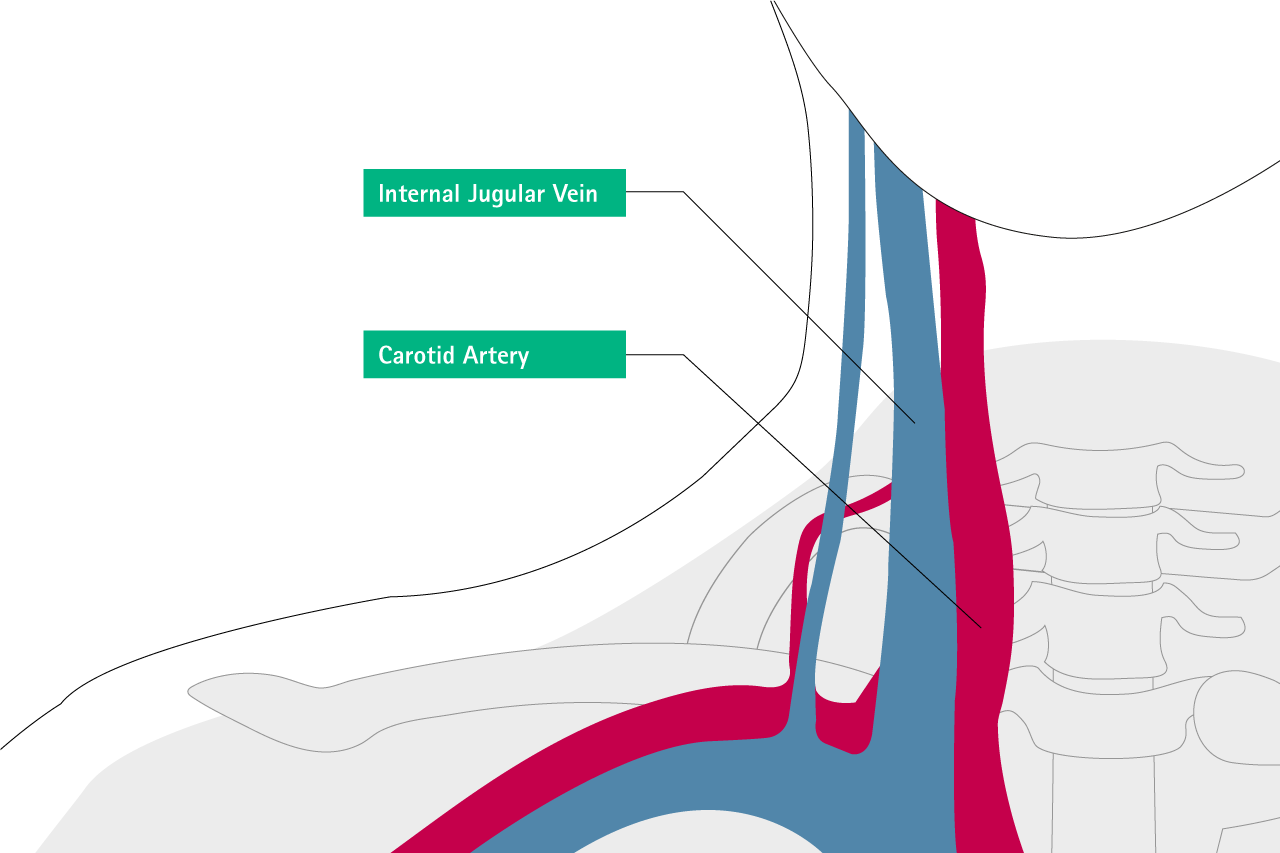

Carotid Artery: Hypotension, hemorrhagic shock
Azygos Vein: Pleural diffusion pulmonary edema, dyspnea, chest pain, back pain

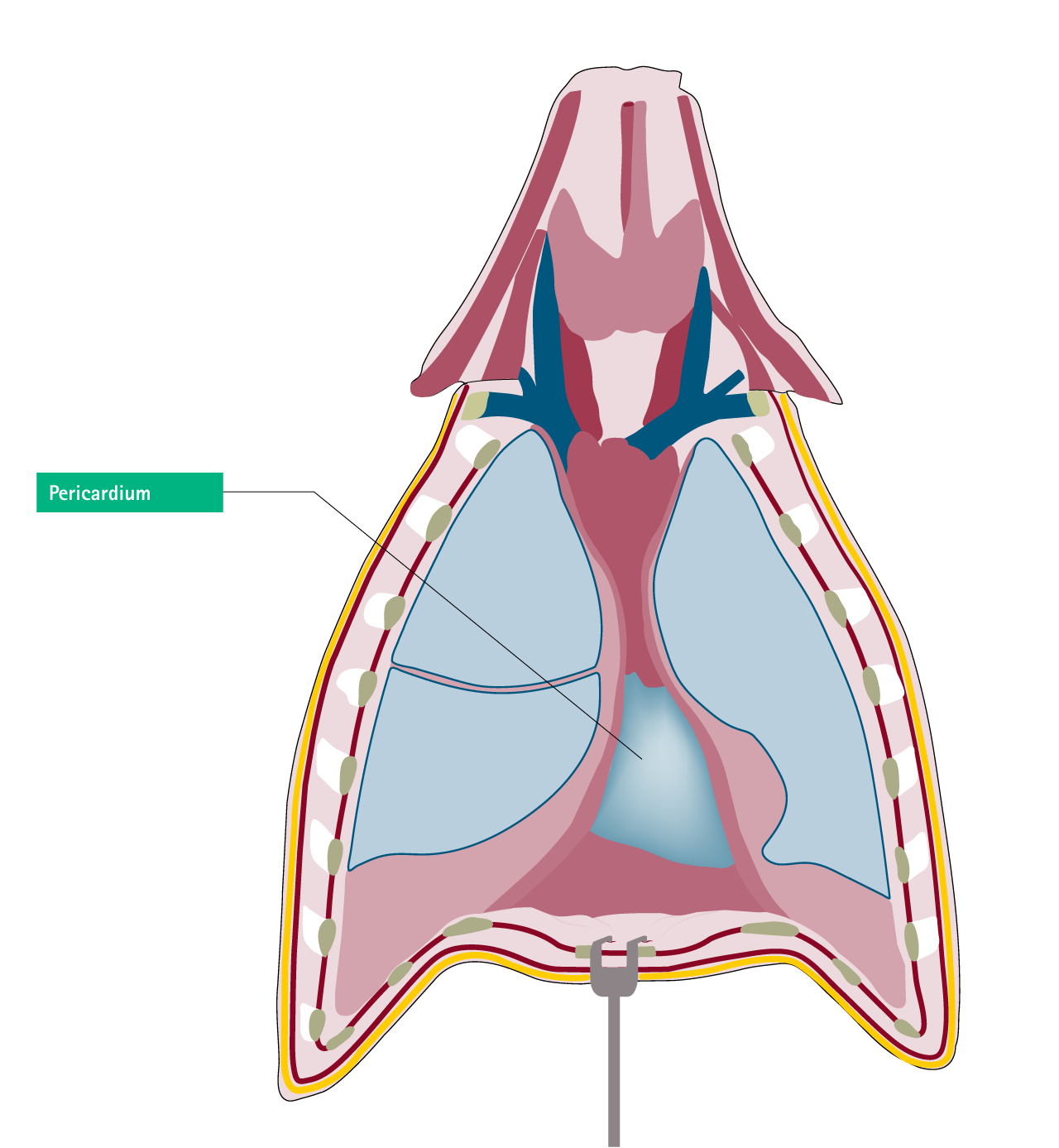

Pericardium: Fatal ventricular fibrillation
Drug extravasation into surrounding -> tissue necrosis, organ dysfunction

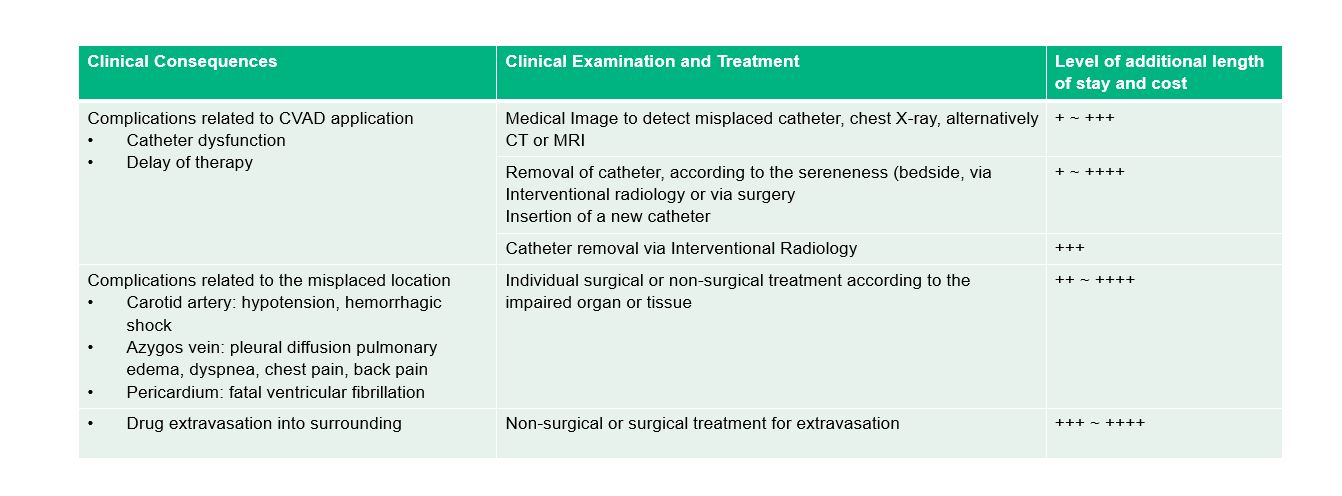

Financial Consequences for misplacement CVADs

Estimated level of costs (time, material, and personnel) related to diagnostic procedures, delay of therapy and required management for misplaced CVADs

Preventive Strategies

Selecting the proper vessel

Incidence of malpositioning is higher in the left thoracic venous system than in the right side
The right side of the circulation should be considered of first preference for CVC insertion unless those insertion sites are contraindicated.
Use ultrasound for selecting the proper vessel for insertion

Select/trim the correct catheter length according to the insertion site and patient’s condition

Use the different technique correctly to implant TIVADs and PICCs (Seldinger, OTW, surgical cutdown)¹⁶

Use of Valve Needles to access the vein for central venous catheters: Save time/no disconnection needed.

Secure the CVADs sufficiently

Select a proper device to guide insertion and confirm tip position

Ultrasound guidance
Intraatrial ECG
Chest X-Ray¹⁷
Other supporting methods/techniques: electromagnetic, manometry (needle and catheter, pressure waveform analysis, blood gas analysis^8-12

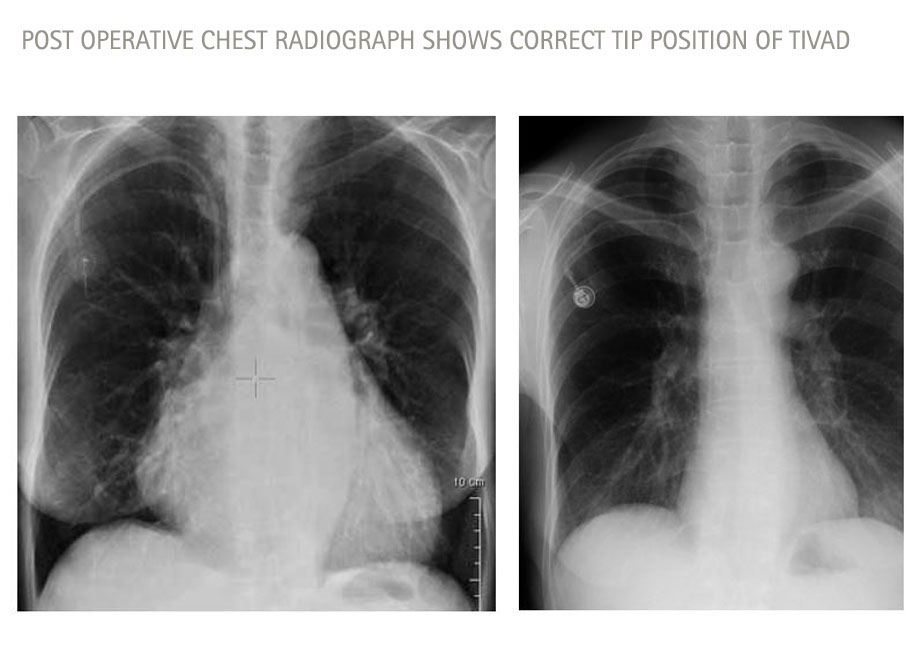

Correctly positioned CVC tip — Chest X-Ray

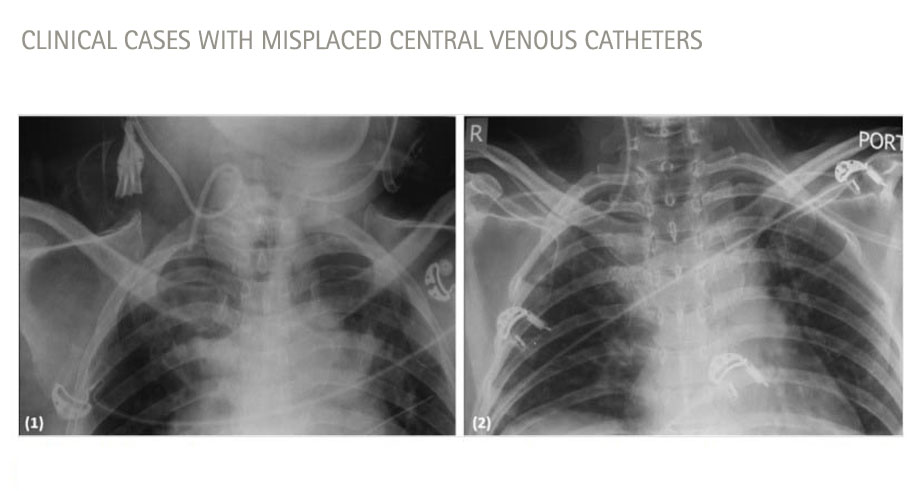

Clinical cases with misplaced cvcs — (1) A triple-lumen 7 Fr. Central venous catheter accessed from right Internal Jugular Vein (IJV) with the tip coiled in the lower part of the IJV itself ⁽¹⁴⁾

(2) A triple-lumen CVC inserted via right subclavian vein, with the tip reaching right IJV ⁽¹⁴⁾

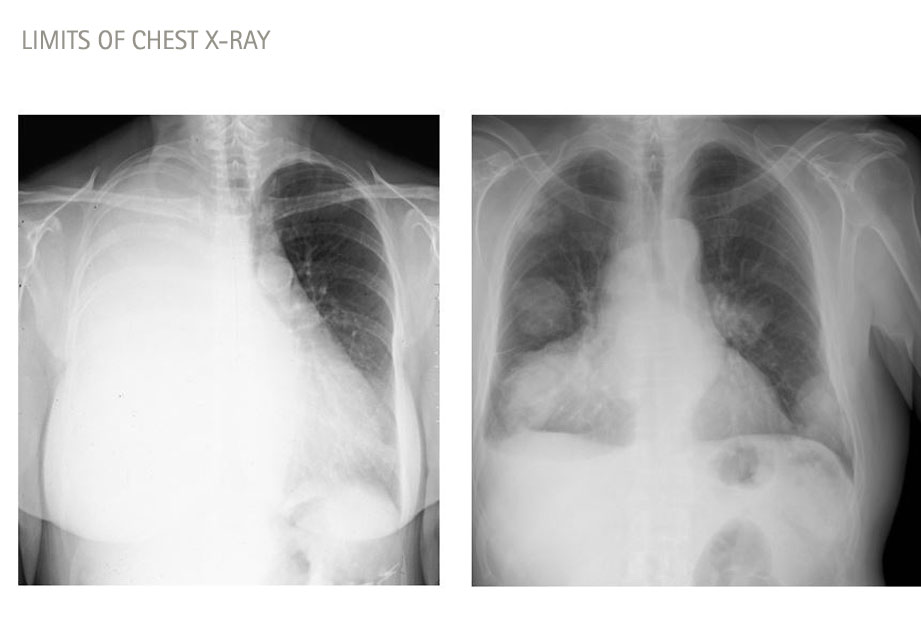

Limits of chest x-ray — In patients with massive pleural effusions (e.g. patients with lung cancer) or patients with multiple metastases, visibility of catheters may be impossible

Use of Valve Needle for venous access: save time/no disconnection needed

Verification of Catheter Position with Medical Imaging

X-Ray

Plain Chest X-Ray is most commonly used to confirm catheter position within the chest and to detect pneumothorax, haemothorax or effusions after CVC placement

Due to the 2D projection the close anatomical proximity of major arteries, veins, and pleura in the neck and chest causes difficulties and it is not possible to reliably state whether the distal section of the catheter is in an artery, vein, pleura, or mediastinum in the chest

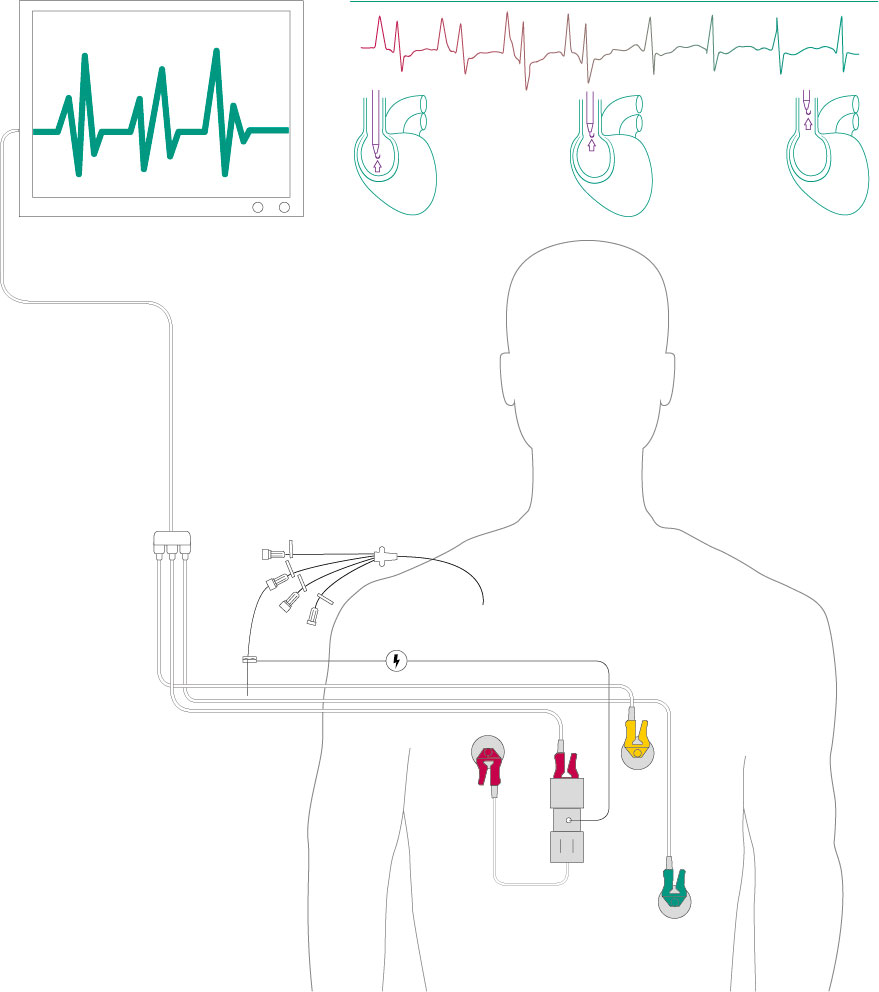

Intraatrial (Intravascular) ECG

The intraatrial (intravascular) ECG technique can be used to confirm CVAD tip position during or after CVAD placement ^9,10,18
Intracavity (Intravascular or intraatrial) ECG tip positioning method with Certodyn and Alphacard is accurate, safe, feasible in all adult and paediatric patients^9,18

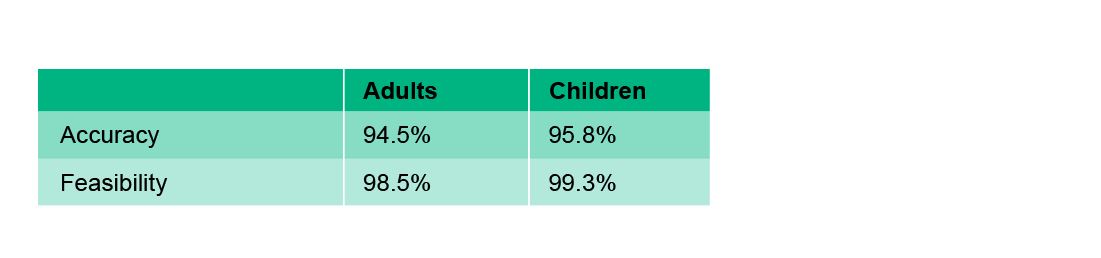

ECG Method: Accuracy and Feasibility compared with Radiography^9,18

Optimal CVC Placement with ECG Tip Positioning

Missed the Live Webinar? Watch the keynote presentation online!

Please register here

Ultrasound

Ultrasound can be used to assess the jugular, femoral, axillary, and arm veins to aid insertion of a CVC, but is of limited value in confirming tip position in the SVC
Transesophageal ultrasound (TEE) can be used if available to directly image the SVC, but this has practical limitations due to availability and operator training
Transthoracic echo (TTE) can identify catheters in the RA, particularly with the injection of bubble contrast, but is not used in routine practice^8-11
